Butterfly-Cone Fan

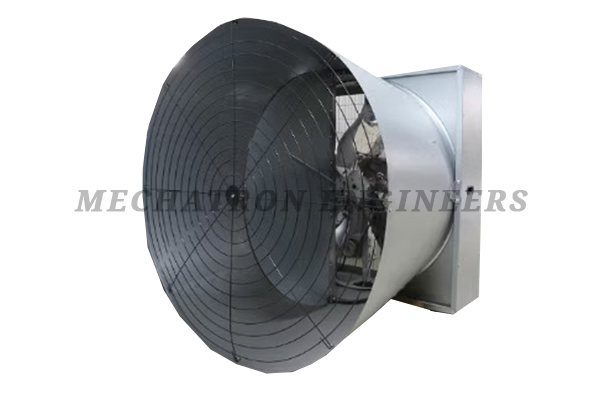

Butterfly Cone Exhaust Fan Overview
The Butterfly Cone Exhaust Fan offers high-efficiency air movement with optimal performance. It is designed to handle demanding environments, ensuring maximum cooling and ventilation. The durable design features high-quality materials to provide longevity and reliability for industrial use.
Key Features:
- High airflow capacity of up to 51,000 cbm/h
- Durable construction with galvanized steel and zinc-coated parts
- Energy-efficient motor with 100% copper wire
- Low-maintenance design with easy-to-service components
- Versatile and suitable for various industrial applications
Technical Specifications
| Specification | Details |
|---|---|
| Size | 1380 x 1380 x 1300 mm |
| Airflow | 51,000 cbm/h |
| Motor | 1.1 kW, 380V, IP 55, Class F, 100% Copper Wire, Three Phase |
| Blade Diameter | 1270 mm |
| Up Frame | 1.00mm & Cone 0.7mm, Zinc Coating 275g/m2 |
| Shutter | Galvanized Steel, 0.40-0.45mm |
| Wind Collector | Galvanized Steel 0.8mm |
| Belt | Type B, Big Pulley, Motor Board, Belt Tensioner |
Butterfly Cone Exhaust Fan
